5.1. Visualization and Pandas

Show code cell source

Hide code cell source

# %pip install pandas numpy     ### ensure pandas and numpy are installed; uncomment when done
# %pip install matplotlib       ### ensure matplotlib is installed; uncomment when done

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt ### because pandas.plot is still matplotlib
# %matplotlib inline            ### uncomment if using Jupyter Notebook
                                ### unless using Jupyter < 7
                                ### use plt.show() to display plots in other environments

5.1.1. Visualization Orientation

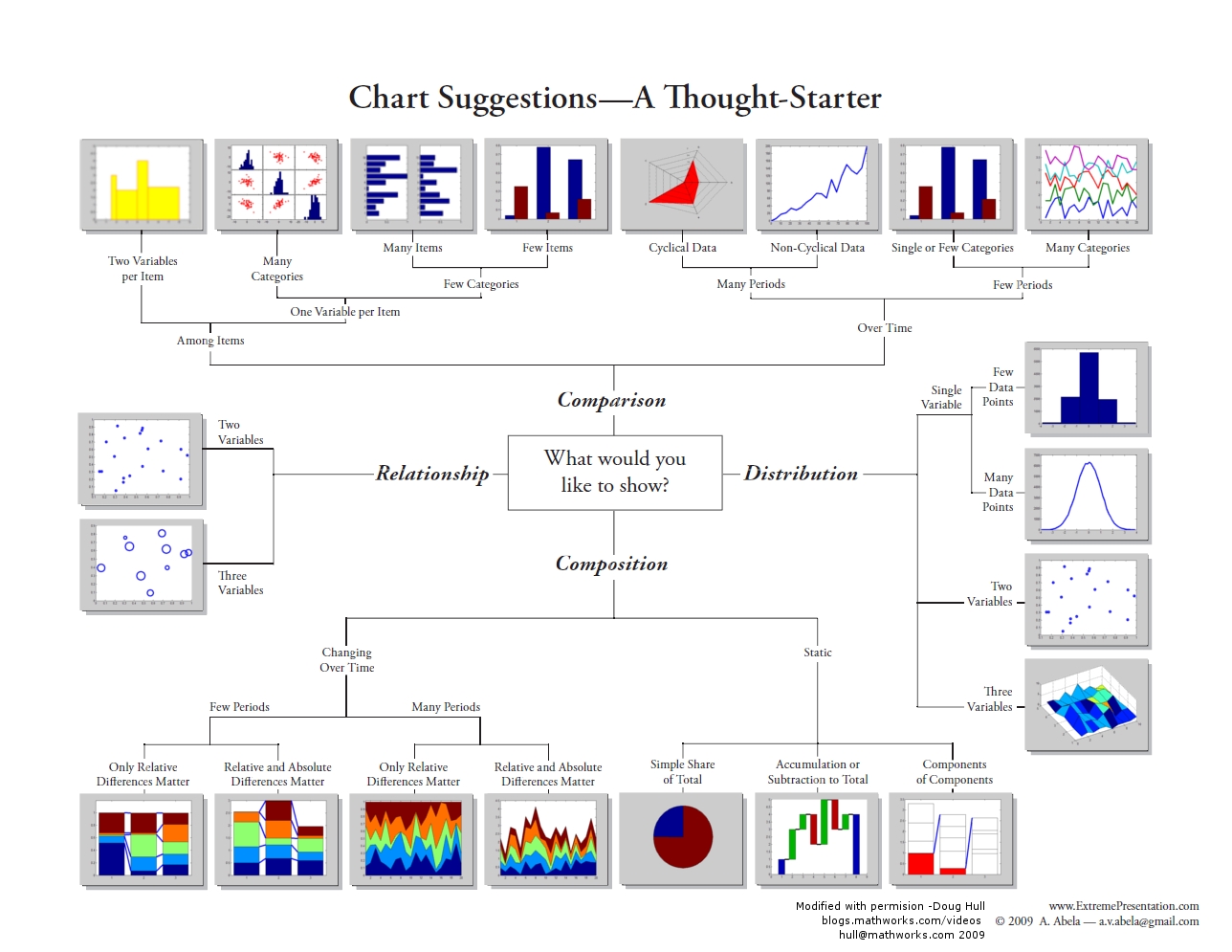

Dr. Andrew Abela created this chart chooser visualization in 2013. The four-dimension chart categorization offer great insight when choosing visualizations.

Fig. 5.1 Andrew Abela Chart Chooser

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

5.1.1.1. Overview

Data visualization is the art and science of transforming raw numbers into compelling visual stories. While spreadsheets and statistical summaries provide precise information, visualizations reveal patterns, relationships, and insights that would remain hidden in tables of data.

Imagine trying to understand weather patterns from thousands of temperature readings versus seeing them plotted as a line graph over time—the visual immediately shows trends, seasonal cycles, and anomalies that numbers alone cannot convey.

Each tool has its strengths: Python excels in programmatic control and integration with data analysis workflows, while R provides statistical visualization excellence, while Tableau and Power BI offer user-friendly interfaces for business users.

Why Visualization is Essential

Data visualization transforms numbers into understanding, serving three fundamental purposes:

• Exploration and Discovery: Visualization reveals patterns, outliers, and relationships invisible in raw data, guiding initial analysis and data cleaning decisions.

• Communication and Persuasion: Well-crafted visuals convey complex findings to diverse audiences, translating technical results into accessible insights.

• Decision Support and Action: Visualization provides clarity for confident decision-making through dashboards, trend analysis, and comparative displays.

Ultimately, visualization bridges the gap between data analysis and actionable insight.

Effective data visualization follows four key principles:

• Context is Key: Design for your specific audience and their decision-making needs.

• Keep It Simple: Use clear labels and remove unnecessary elements that don’t add value.

• Choose the Right Chart Type: Match chart types to data structure:

  • bars for categories,

  • lines for trends,

  • scatter plots for relationships.

• Tell a Story: Structure visualizations to guide the audience through a logical narrative flow.

5.1.1.2. Common Tools and Libraries

The data visualization landscape offers tools ranging from point-and-click platforms to code-based libraries. Understanding this ecosystem helps you choose the right tool for your needs.

Business Intelligence Platforms:

• Tableau: Industry-leading dashboard creation with drag-and-drop interface

• Power BI: Microsoft’s analytics platform with strong Excel and cloud integration

Python Visualization Libraries:

• Matplotlib: The foundational library providing complete control over plot elements

• Seaborn: Statistical graphics with simplified syntax, built on Matplotlib. Seaborn is a higher-level library specifically designed for creating more visually appealing and informative statistical graphics with less code. It’s excellent for exploring relationships between variables. Seaborn also requires Matplotlib as a dependency.

• Plotly: Interactive, web-ready visualizations including 3D and geographic plots

• Pandas: Quick plotting directly from DataFrames for exploratory analysis

While business tools excel at dashboard creation and user-friendly interfaces, Python libraries offer several advantages for data scientists:

• Integration: Seamless workflow from data analysis to visualization

• Reproducibility: Code-based plots can be version controlled and automated

• Customization: Complete control over every visual element

• Cost: Open-source tools reduce licensing expenses

This chapter focuses on Pandas visualization—the fastest way to create exploratory plots directly from your data.

5.1.1.3. Which Library/Plot to Use?

It is essential to know which plots to use when the need for data visualization arises. Matplotlib (plt/ax), Pandas (df.plot), and Seaborn (.) each have a set of functions and methods for data visualization. You will learn about the functions and methods later, but here is a summary of them. Pay attention to what they are used for for now and use this table as a reference.

Plot Type	Pandas (.plot)	Matplotlib (plt)	Seaborn (sns)	Uses
Line	.line()/.plot()	.plot()	.lineplot()	Time series, trends
Scatter	.scatter(x, y)	.scatter()	.scatterplot()	Correlations, relationships
Bar (vert.)	.bar()	.bar()	.barplot()	Category comparisons
Bar (horiz.)	.barh()	.barh()	.barplot(y, x)	Long category labels
Histogram	.hist()	.hist()	.histplot()	Distribution of numeric data
Box plot	.box()	.boxplot()	.boxplot()	Distribution + outliers
KDE/ Density	.kde()/ .density()	—	.kdeplot()	Smoothed distribution
ECDF	—	— .ecdf() (v3.8+)	.ecdfplot()	cumulative distribution
Area	.area()	.fill_between()	—	Cumulative trends
Stacked area	.area( stacked=True)	.stackplot()	—	Composition over time
Pie	.pie()(ser)	.pie()	—	Part-to-whole (use sparingly)
Hexbin	.hexbin(x, y)(df)	.hexbin()	.jointplot( kind="hex")(fig.)	Dense scatter (binning)
Violin	—	.violinplot()	.violinplot()	Distribution shape by category
Heatmap	—	.imshow()/ .pcolormesh()	.heatmap()	Correlation matrices, grids
Count plot	—	—	.countplot()	Frequency of categories
Pair plot	—	—	.pairplot()(fig.)	Multivariate relationships
Joint plot	—	—	.jointplot()(fig.)	Bivariate + marginals
Regression	—	—	.regplot()(ax)/ .lmplot()(fig.)	Linear relationships + CI
Contour	—	.contour()/ .contourf()	.kdeplot(x, y) (2D density)	Continuous 2D fields/level sets

5.1.1.4. Seaborn Datasets

Some of the Seaborn built-in datasets are commonly used for learning data science and machine learning.

Name	Rows × Cols	What it’s about	Common uses
tips	244 × 7	Restaurant bills & tips	categorical plots, regression, grouping
iris	150 × 5	Iris flower measurements	pairplots, clustering, basics
diamonds	53,940 × 10	Diamond prices & attributes	regression, categorical + numeric
flights	144 × 3	Monthly air passengers (’49–’60)	heatmaps, time series
titanic	891 × 15	Titanic passengers	categorical analysis, missing data
planets	1,035 × 6	Exoplanet discoveries	distributions, facet grids
fmri	1,064 × 4	fMRI signal over time	lineplots with CIs

To load the datasets, use the load_dataset function with syntax:

[name] = sns.load_dataset("[dataset]")

Here we would take a quick look at the popular ones.

5.1.1.4.1. Iris

The Iris dataset, introduced by Ronald A. Fisher in 1936, is one of the most well-known datasets in statistics and machine learning. It is often used for testing classification and visualization techniques. It contains measurements of three species of iris flowers: Setosa, Versicolor, and Virginica. The features of the iris dataset include:

Feature	Description	Units
sepal_length	Length of the outer part of the flower	cm
sepal_width	Width of the outer part	cm
petal_length	Length of the inner petal	cm
petal_width	Width of the inner petal	cm
species	Type of iris flower (setosa, versicolor, virginica)	categorical

### load dataset

# !pip install seaborn      ### ensure seaborn is installed; uncomment when done
# import seaborn as sns     ### uncomment if seaborn is not already imported

iris = sns.load_dataset("iris")
iris.head(5)

	sepal_length	sepal_width	petal_length	petal_width	species
0	5.1	3.5	1.4	0.2	setosa
1	4.9	3.0	1.4	0.2	setosa
2	4.7	3.2	1.3	0.2	setosa
3	4.6	3.1	1.5	0.2	setosa
4	5.0	3.6	1.4	0.2	setosa

To ensure a dataset is imported for your analysis, you may use the following code.

if "sns" not in globals():
    import seaborn as sns

if "titanic" not in globals():
    titanic = sns.load_dataset("titanic")

5.1.1.4.2. Tips

The tips dataset records restaurant bills and gratuities along with simple demographics, making it useful for practicing categorical comparisons and relationships between numeric variables.

The tips dataset has features such as:

Feature	Description	Type
total_bill	Total bill amount (including tax)	float
tip	Tip amount given by the customer	float
sex	Gender of the server’s customer (Male, Female)	categorical
smoker	Whether the party included smokers (Yes, No)	categorical
day	Day of the week (Thur, Fri, Sat, Sun)	categorical
time	Meal type (Lunch, Dinner)	categorical
size	Number of people in the dining party	integer

tips = sns.load_dataset('tips')
tips.head(3)

	total_bill	tip	sex	smoker	day	time	size
0	16.99	1.01	Female	No	Sun	Dinner	2
1	10.34	1.66	Male	No	Sun	Dinner	3
2	21.01	3.50	Male	No	Sun	Dinner	3

5.1.1.4.3. Titanic

The titanic dataset includes passenger demographics, ticket class, fares, and survival outcome, making it a classic dataset for classification and categorical analysis of the catastrophic event in 1912.

titanic = sns.load_dataset('titanic')
titanic.head(3)

	survived	pclass	sex	age	sibsp	parch	fare	embarked	class	who	adult_male	deck	embark_town	alive	alone
0	0	3	male	22.0	1	0	7.2500	S	Third	man	True	NaN	Southampton	no	False
1	1	1	female	38.0	1	0	71.2833	C	First	woman	False	C	Cherbourg	yes	False
2	1	3	female	26.0	0	0	7.9250	S	Third	woman	False	NaN	Southampton	yes	True

5.1.1.5. Previewing Data

After you load a new dataset, always use the following methods/property to explore the data:

• head() (how the dataset looks like),

• describe() (descriptive statistics),

• info(), and

• shape (get dimension information; or just evaluate the dataframe)

Here below is how you can preview a dataset before starting your analysis.

print(tips.head(), "\n")
print(tips.info(), "\n")
print(tips.describe(), "\n")
print(tips.shape, "\n")

   total_bill   tip     sex smoker  day    time  size
0       16.99  1.01  Female     No  Sun  Dinner     2
1       10.34  1.66    Male     No  Sun  Dinner     3
2       21.01  3.50    Male     No  Sun  Dinner     3
3       23.68  3.31    Male     No  Sun  Dinner     2
4       24.59  3.61  Female     No  Sun  Dinner     4

<class 'pandas.DataFrame'>
RangeIndex: 244 entries, 0 to 243
Data columns (total 7 columns):
 #   Column      Non-Null Count  Dtype
---  ------      --------------  -----
 0   total_bill  244 non-null    float64
 1   tip         244 non-null    float64
 2   sex         244 non-null    category
 3   smoker      244 non-null    category
 4   day         244 non-null    category
 5   time        244 non-null    category
 6   size        244 non-null    int64
dtypes: category(4), float64(2), int64(1)
memory usage: 7.4 KB
None

       total_bill         tip        size
count  244.000000  244.000000  244.000000
mean    19.785943    2.998279    2.569672
std      8.902412    1.383638    0.951100
min      3.070000    1.000000    1.000000
25%     13.347500    2.000000    2.000000
50%     17.795000    2.900000    2.000000
75%     24.127500    3.562500    3.000000
max     50.810000   10.000000    6.000000

(244, 7)

5.1.1.6. Style Sheets

The style sheet, or themes, basically creates a set of style rules that your plots follow. The use of a stylesheet gives your plots a unified look and feel, making them more professional. You can even create your own stylesheet.

Matplotlib has style sheets (or themes) you can use to make your plots look a little nicer. Popular stylesheets include:

• bmh (Bayesian Methods for Hackers)

• fivethirtyeight (FiveThirtyEight is a news site)

• ggplot (R’s ggplot2 default theme)

• dark_background

The syntax for using stylesheets in matplotlib is:

plt.style.use(style_name)

To see all the stylesheets available, use:

plt.style.available

Note that:

• we use plt.style, which means we are using matplotlib here.

• Pandas by default pulls colors from Matplotlib’s axes.prop_cycle, a Matplotlib rcParam (runtime configuration parameter), which is a color iterator (cycler) that cycles through a list of 10 predefined colors. That’s why you see different colors, e.g., when plotting multiple columns from a df, because Matplotlib cycles through 10 colors before repeating.

Comment/uncomment out the following lines of plt.style.use() to see how the example histogram change looks.

import matplotlib.pyplot as plt

# plt.style.use('default')
# plt.style.use('ggplot')
# plt.style.use('bmh')
plt.style.use('fivethirtyeight')
# plt.style.use('dark_background')
# plt.style.use('fast')

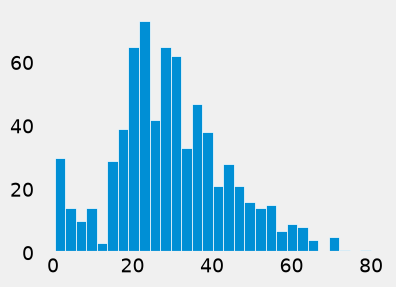

titanic['age'].hist(figsize=(4, 3), bins=30, grid=False, edgecolor='white')

<Axes: >

To see all the available styles/themes in the environment, use the syntax:

plt.style.available

['Solarize_Light2',
 'bmh',
 'classic',
 'dark_background',
 'fast',
 'fivethirtyeight',
 'ggplot',
 'grayscale',
 'petroff10',
 'petroff6',
 'petroff8',
 'seaborn-v0_8',
 'seaborn-v0_8-bright',
 'seaborn-v0_8-colorblind',
 'seaborn-v0_8-dark',
 'seaborn-v0_8-dark-palette',
 'seaborn-v0_8-darkgrid',
 'seaborn-v0_8-deep',
 'seaborn-v0_8-muted',
 'seaborn-v0_8-notebook',
 'seaborn-v0_8-paper',
 'seaborn-v0_8-pastel',
 'seaborn-v0_8-poster',
 'seaborn-v0_8-talk',
 'seaborn-v0_8-ticks',
 'seaborn-v0_8-white',
 'seaborn-v0_8-whitegrid',
 'tableau-colorblind10']

5.1.2. Pandas Overview

Pandas offers a simple, high-level interface for creating plots directly from Series and DataFrame objects. It builds on Matplotlib behind the scenes, allowing you to make quick, readable plots with calls like df.plot() or series.plot(). You can easily produce line, bar/stacked bar, area, scatter, box, histogram, KDE, hexbin, and pie charts while using your index (including datetime) and column labels.

5.1.2.1. The .plot(kind=) Method

.plot(), a wrapper around Matplotlib’s plt.plot(), is the primary top-level plotting method in pandas, which uses the kind keyword argument to access a variety of plotting methods including:

• bar or barh for bar plots

• hist for histogram

• box for boxplot

• kde’ or density` for density plots

• area for area plots

• scatter for scatter plots

• hexbin for hexagonal bin plots

• pie for pie plots

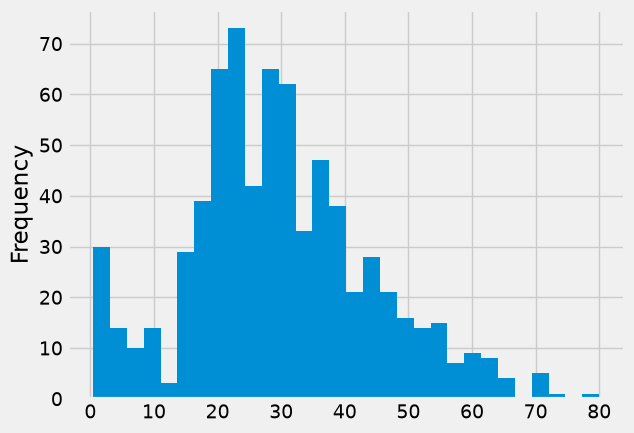

For example, you may want to see the histogram of the age of the titanic passengers.

titanic = sns.load_dataset('titanic')
titanic["age"].plot(kind='hist', bins=30)

<Axes: ylabel='Frequency'>

5.1.2.2. The Plotting Methods (df.plot.<kind>)

Instead of the kind= arguments, your can use the plotting methods directly by using the df.plot.<kind> syntax, which makes it easier to find other plot methods.

titanic = sns.load_dataset('titanic')
titanic.head()

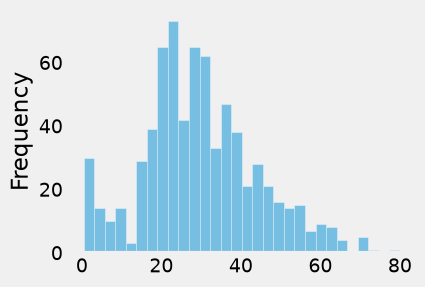

titanic["age"].plot.hist(bins=30, alpha=0.5, grid=False, edgecolor='white', figsize=(4, 3))

<Axes: ylabel='Frequency'>

In the Python shell, you hit the tab key after df.plot., and in Jupyter, you just type til the dot and the menu with the methods will show up.

(.venv) tcn85✪mstː~/workspace/dsm$ python
Python 3.13.7 (main, Aug 14 2025, 11:12:11) [Clang 17.0.0 (clang-1700.0.13.3)] on darwin
Type "help", "copyright", "credits" or "license" for more information.

>>> import pandas as pd
>>> df = pd.DataFrame()
>>> df.plot.<TAB>
df.plot.area(     df.plot.box(      df.plot.hist(     df.plot.pie(
df.plot.bar(      df.plot.density(  df.plot.kde(      df.plot.scatter(
df.plot.barh(     df.plot.hexbin(   df.plot.line(

5.1.2.3. Sample Plots

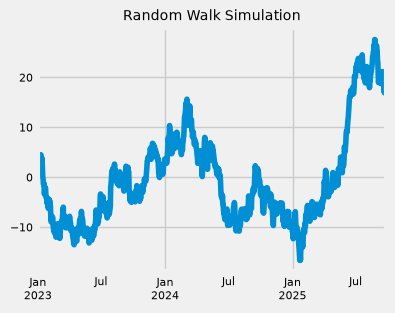

For example, here we have a piece of randomly generated time series data to plot using .plot(), which by default gives you a line plot. Because the index consists of dates, .plot() calls gcf().autofmt_xdate() to try to format the x-axis.

import numpy as np

np.random.seed(42)  ### for reproducibility
n = 1000            ### number of time points
ts = pd.Series(np.random.randn(n), index=pd.date_range("2023-01-01", periods=n))
ts = ts.cumsum()    ### cumulative sum to create a random walk

ax = ts.plot(kind="line", figsize=(4, 3), fontsize=8)  ### plot the entire time series
ax.set_title("Random Walk Simulation", fontsize=10)

Text(0.5, 1.0, 'Random Walk Simulation')

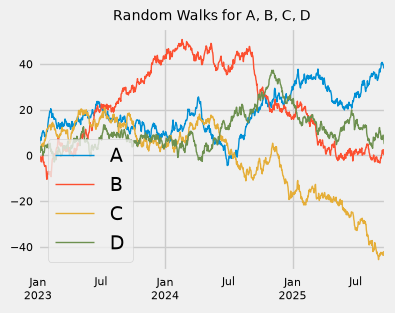

For DataFrames, .plot() plots all of the columns with labels.

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

np.random.seed(42)  ### for reproducibility
n = 1000            ### number of time points
ts = pd.Series(data = np.random.randn(n), index=pd.date_range("2023-01-01", periods=n))
ts = ts.cumsum()    ### cumulative sum to create a random walk
df = pd.DataFrame(data = np.random.randn(1000, 4), index=ts.index, columns=list("ABCD"))
df = df.cumsum()
print(df.head())
plt.figure();
df.plot(kind="line", figsize=(4, 3), lw=1, fontsize=8);  ### plot all columns together
plt.title("Random Walks for A, B, C, D", fontsize=10);

                   A         B         C         D
2023-01-01  1.399355  0.924634  0.059630 -0.646937
2023-01-02  2.097579  1.318119  0.954824 -0.011765
2023-01-03  3.147131  0.782884  2.272218  0.185835
2023-01-04  5.222392  0.093696  4.008181  0.383745
2023-01-05  4.570974 -0.390190  3.687834  0.807911

<Figure size 640x480 with 0 Axes>

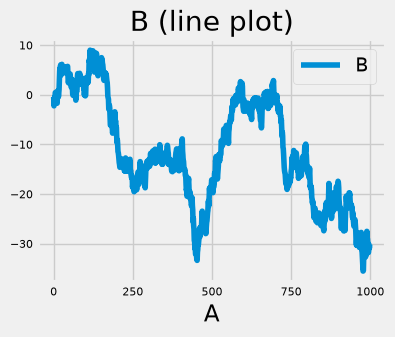

Or you can pick columns of your choice to plot.

df1 = pd.DataFrame(np.random.randn(1000, 2), columns=["B", "C"]).cumsum()
df1["A"] = pd.Series(data = list(range(len(df1))))
print(df1.head(3))
df1.plot(x="A", y="B", figsize=(4, 3), fontsize=8, title="B (line plot)");

          B         C  A
0 -0.423760 -0.453414  0
1 -2.219403 -0.783504  1
2 -1.486574 -2.057736  2

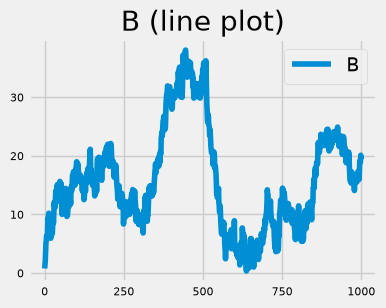

Or, similarly,

df1 = pd.DataFrame(
    data=np.random.randn(1000, 2),
    columns=["B", "C"]
).cumsum()

print(df1.head(3))

df1.plot(y="B", figsize=(4, 3), fontsize=8, title="B (line plot)");
# df1.plot(y="B", figsize=(4, 3), fontsize=8, title="B (line plot)", xlabel="Index", ylabel="Value");

          B         C
0  0.785185 -1.777681
1  1.499931 -2.011405
2  2.207388 -1.234473

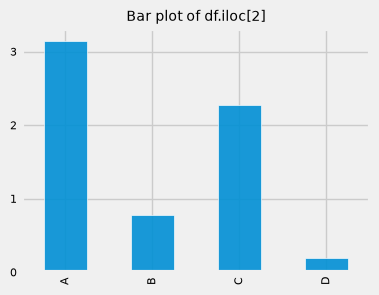

So far we have been seeing the default line plots. A histogram can be create with pd.plot(kind="hist"). Here we use the kind= keyword argument to specify the type of plot.

print(df.head())                ### df is a DataFrame with 4 columns (A, B, C, D) and 1000 rows
print(df.iloc[2])               ### df.iloc[2] is a Series with 4 values (one for each column)
# plt.figure();
df.iloc[2].plot(kind="bar", figsize=(4, 3),     ### plot the 3rd row of df as a bar plot
        title="Bar plot of df.iloc[2] (using 'kind' argument)",
        edgecolor="white",
        alpha=0.9,
        fontsize=8);
plt.title("Bar plot of df.iloc[2]", fontsize=10);

                   A         B         C         D
2023-01-01  1.399355  0.924634  0.059630 -0.646937
2023-01-02  2.097579  1.318119  0.954824 -0.011765
2023-01-03  3.147131  0.782884  2.272218  0.185835
2023-01-04  5.222392  0.093696  4.008181  0.383745
2023-01-05  4.570974 -0.390190  3.687834  0.807911
A    3.147131
B    0.782884
C    2.272218
D    0.185835
Name: 2023-01-03 00:00:00, dtype: float64

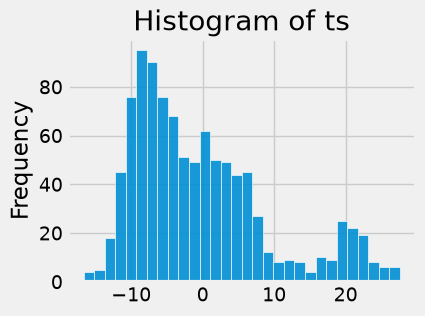

Another example of using the .plot(kind=) syntax to generate plots. In this case, the time series dataset you generate earlier.

print(ts.head(3))
ts.plot(kind="hist", bins=30, figsize=(4, 3),           ### plot a histogram of the time series, 30 intervals
        title="Histogram of ts",
        edgecolor="white",
        alpha=0.9)

2023-01-01    0.496714
2023-01-02    0.358450
2023-01-03    1.006138
Freq: D, dtype: float64

<Axes: title={'center': 'Histogram of ts'}, ylabel='Frequency'>

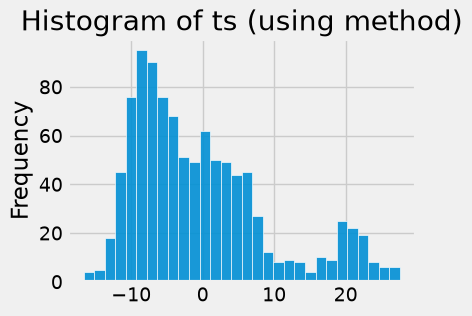

The same plot can be produced using the plot.hist() method.

ts.plot.hist(bins=30, figsize=(4, 3),
             title="Histogram of ts (using method)",
             edgecolor="white",
             alpha=0.9)

<Axes: title={'center': 'Histogram of ts (using method)'}, ylabel='Frequency'>

For example, for histograms:

1. `df.plot.hist()`: Uses Pandas’s unified `.plot()` interface (which wraps Matplotlib) to draw a histogram.
2. `df.plot(kind='hist')`: The same as df.plot.hist(); a generic form of the same call.
3. Pandas has two top-level plotting methods: `df.hist()` (a quick wrapper around Matplotlib’s `plt.hist()` for all numeric columns) and `df.boxplot()`.

#	Method	Applies to	Subplots	Overlays Multiple Columns	Based On	Typical Use
1	df.hist()	DataFrame only	Yes (grid of plots)	No	plt.hist()	Quick overview of all numeric columns
2	df.plot.hist()	DataFrame or Series	Single plot	Yes	Pandas .plot() wrapper	Custom, combined histograms

5.1.3. Custom parameters

Most plotting calls accept Matplotlib keyword arguments and return a Matplotlib Axes object for further customization. Often used parameters from pandas API reference (pandas.DataFrame.plot) include:

1. data: Series or DataFrame. The object for which the method is called.

2. x: label or position, default None. Only used if data is a DataFrame.

3. y: label, position or list of label, positions, default None. Allows plotting of one column versus another. Only used if data is a DataFrame.

4. kind: str. The kind of plot to produce: line (default), bar, barh, hist, box, kde/density, area, pie, scatter (DataFrame only), hexbin (DataFrame only).

5. ax

6. figsize

7. use_index

8. title

9. ticks (xticks and yticks): sequence. Values to use for ticks.

10. lim (xlim and ylim): 2-tuple/list. Set the limits of the axes.

11. label (xlabel and ylabel: Name to use for the label on axis (default to index name).

12. coloarmap: str or matplotlib colormap object

13. stacked: bool, default False in line and bar plots, and True in area plot. If True, create stacked plot.

14. **kwargs (matplotlib):

    1. lw

    2. alpha

15. style sheets: Style the plots to look globally with plt.style.use(...).

16. color & size:

    • For scatter plots you can color by a column (c) or

    • size by an array (s=df['col']*scale) and

    • use cmap for colormaps.

17. fine-tuning: For large or dense data, consider hexbin or KDE plots instead of scatter.

18. Plot Types The pandas.DataFrame.plot API lists 11 plots to be used with the kind parameter: The kind of plot to produce: line(default), bar, barh (horizontal bar plot), hist, box, kde (density), area, pie, scatter, hexbin. These plots can be summarized as:

#	Method	Shorthand	Description	Best For
1	.plot(kind='line')	.plot.line()	Line plot	Time series, continuous trends
2	.plot(kind='bar')	.plot.bar()	Vertical bar chart	Comparing categories side by side
3	.plot(kind='barh')	.plot.barh()	Horizontal bar chart	Long category names, rankings
4	.plot(kind='hist')	.plot.hist()	Histogram	Distribution of a single variable
5	.plot(kind='box')	.plot.box()	Box plot	Spotting outliers, comparing spread
6	.plot(kind='kde')	.plot.kde()	KDE curve	Smooth distribution, comparing shapes
7	.plot(kind='density')	.plot.density()	Alias for kde	Same as KDE
8	.plot(kind='area')	.plot.area()	Area plot	Cumulative totals, part-to-whole over time
9	.plot(kind='pie')	.plot.pie()	Pie chart	Proportions of a whole (few categories)
10	.plot(kind='scatter', x='col1', y='col2')	.plot.scatter(x='col1', y='col2')	Scatter plot	Correlation between two numeric variables
11	.plot(kind='hexbin', x='col1', y='col2')	.plot.hexbin(x='col1', y='col2')	Hexbin plot	Large datasets, 2D density visualization

Notes:

• kde and density are aliases — same plot, counted once for unique types

• scatter and hexbin require x and y arguments

• pie requires a single column (y= or per-column)

• scatter and hexbin are DataFrame only

Note: Jupyter Notebooks enable inline plotting (no pop-up) with %matplotlib inline, which is an IPython magic command that tells Jupyter Notebook to render Matplotlib plots directly inside the notebook output cell instead of in a separate window. You don’t need %matplotlib inline in Jupyter environment with IPython >= 7.

Later, when you learn Matplotlib, you will see why these methods of plotting are a lot easier to use. Pandas visualization balances ease of use with control over the figure. A lot of the plot calls also accept additional arguments of their parent matplotlib.plt call.
