6.3. Styling and Plot Types#
6.3.1. Styling in Practice#
This section turns a default chart into one a manager can read. Three levels decide how every chart looks, and each level overrides the one above it:
Level |
What it is |
Applies to |
Example |
|---|---|---|---|
1. |
Matplotlib’s built-in defaults for every part of a chart |
Every chart drawn after you change it |
|
2. Style sheet |
A named bundle of |
Every chart drawn after you switch |
|
3. Arguments |
A setting passed in one plotting call |
Only that element |
|
For example, lines are 1.5 points wide by default (rcParams). A style sheet can change that for every line, and ax.plot(x, y, lw=2) makes just that one line 2 points wide, whatever the other two levels say. Set the look of a whole report at the first two levels, then use arguments for the elements that need to stand out.
The first two sections cover the two report-wide levels; the rest of this section covers the arguments you use most: legends, axis ranges, colors, and line styles.
6.3.1.1. rcParams#
Every part of a chart has a default setting: the font size, line width, colors, grid lines, figure size, and many more. Matplotlib keeps all of these defaults in plt.rcParams and looks one up whenever you don’t choose a value yourself. The name comes from runtime configuration (“rc”): Matplotlib loads the defaults from a settings file called matplotlibrc when it starts, and you can change them while your program runs.
This is handy when a report has many charts. Set the font size and grid once in rcParams instead of repeating fontsize= in every call, and every chart matches.
Each setting has a name, and you can look up its current value:
print(plt.rcParams['font.size']) ### the default font size, in points
print(plt.rcParams['axes.grid']) ### are grid lines on by default?
print(len(plt.rcParams), 'settings in total')
10.0
False
339 settings in total
The default font size is 10 points. Setting plt.rcParams['font.size'] = 13 changes it for every chart drawn afterward. To try settings on one chart only, use plt.rc_context(), as in the next cell; the rest of the notebook keeps its defaults.
regions = ['North', 'South', 'East', 'West']
sales = [150, 120, 180, 90]
### plt.rcParams['font.size'] = 13 would change every later chart;
### plt.rc_context() changes it only inside this block

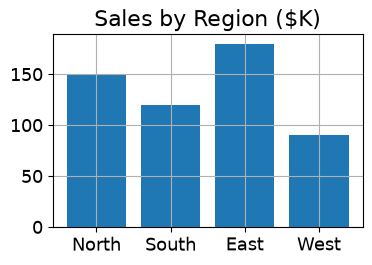

with plt.rc_context({'font.size': 13, 'axes.grid': True}):
fig, ax = plt.subplots(figsize=(4, 2.5))
ax.bar(regions, sales)
ax.set_title('Sales by Region ($K)')
plt.show()
Going deeper: exploring rcParams. You don’t need to memorize these settings; you need to know how to find them. Each name has two parts: the part of the chart it belongs to, then the setting. font.size is the size setting in the font group, and axes.grid turns grid lines on or off for every axes. Listing the groups shows how much you can control:
groups = sorted({name.split('.')[0] for name in plt.rcParams}) ### the part before the first dot
print(len(plt.rcParams), 'settings in', len(groups), 'groups:')
print(groups)
339 settings in 45 groups:
['_internal', 'agg', 'animation', 'axes', 'axes3d', 'backend', 'backend_fallback', 'boxplot', 'contour', 'date', 'docstring', 'errorbar', 'figure', 'font', 'grid', 'hatch', 'hist', 'image', 'interactive', 'keymap', 'legend', 'lines', 'macosx', 'markers', 'mathtext', 'patch', 'path', 'pcolor', 'pcolormesh', 'pdf', 'pgf', 'polaraxes', 'ps', 'savefig', 'scatter', 'svg', 'text', 'timezone', 'tk', 'toolbar', 'webagg', 'xaxis', 'xtick', 'yaxis', 'ytick']
To find the settings for one topic, search the names with find_all(). For example, the four lines that frame a chart’s plotting area are called spines:
plt.rcParams.find_all('spines')
RcParams({'axes.spines.bottom': True,
'axes.spines.left': True,
'axes.spines.right': True,
'axes.spines.top': True})

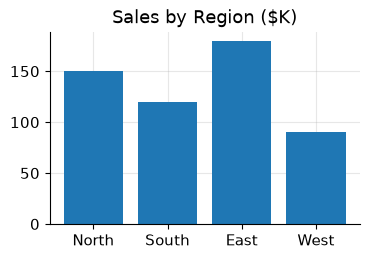

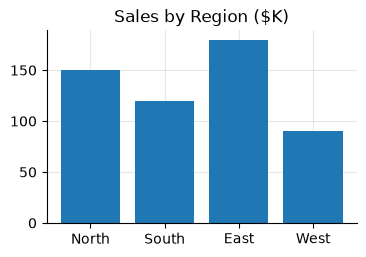

Once you know a name, you can use it. Many business charts drop the top and right spines and add a light grid, so the reader’s eye goes to the data. Instead of fixing each chart by hand, set it once:
regions = ['North', 'South', 'East', 'West']
sales = [150, 120, 180, 90]
with plt.rc_context({'axes.spines.top': False, 'axes.spines.right': False,
'axes.grid': True, 'grid.alpha': 0.3,
'axes.axisbelow': True}): ### grid behind the bars
fig, ax = plt.subplots(figsize=(4, 2.5))
ax.bar(regions, sales)
ax.set_title('Sales by Region ($K)')
plt.show()
To see whether a setting has been changed, compare its current value with Matplotlib’s built-in default:
import matplotlib as mpl
print('built-in default:', mpl.rcParamsDefault['font.size'], '| current:', plt.rcParams['font.size'])
built-in default: 10.0 | current: 10.0
6.3.1.2. Style Sheets#
A style sheet is a named bundle of rcParams values (colors, fonts, grid lines, and so on) chosen to work together. Instead of changing settings one by one, plt.style.use('ggplot') switches all of them for every chart drawn afterward. plt.style.available lists the styles installed in your environment, and with plt.style.context(...): tries a style on one chart without changing the rest of the notebook.

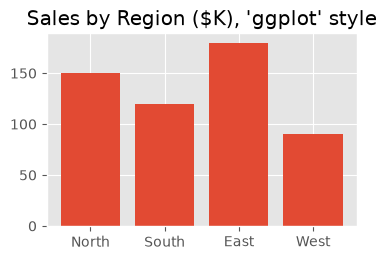

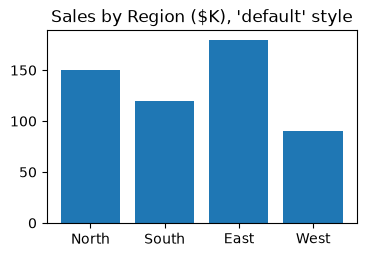

The same bar chart in two styles:
regions = ['North', 'South', 'East', 'West']
sales = [150, 120, 180, 90] ### quarterly sales in $K
for style in ['default', 'ggplot']:
with plt.style.context(style): ### the style applies only inside this block
fig, ax = plt.subplots(figsize=(4, 2.5))
ax.bar(regions, sales)
ax.set_title(f"Sales by Region ($K), '{style}' style")
plt.show()
Going deeper: what a style sheet contains, and your own. A style sheet is simply a saved set of rcParams names and values. plt.style.library shows exactly what each style changes; here is ggplot:
print(plt.style.library['ggplot'])
axes.axisbelow: True
axes.edgecolor: white
axes.facecolor: #E5E5E5
axes.grid: True
axes.labelcolor: #555555
axes.labelsize: large
axes.linewidth: 1.0
axes.prop_cycle: cycler('color', ['#E24A33', '#348ABD', '#988ED5', '#777777', '#FBC15E', '#8EBA42', '#FFB5B8'])
axes.titlesize: x-large
figure.edgecolor: 0.50
figure.facecolor: white
font.size: 10.0
grid.color: white
grid.linestyle: -
patch.antialiased: True
patch.edgecolor: #EEEEEE
patch.facecolor: #348ABD
patch.linewidth: 0.5
xtick.color: #555555
xtick.direction: out
ytick.color: #555555
ytick.direction: out
You can save your own style sheet. It is a plain text file ending in .mplstyle, with one rcParams setting per line, written name: value. Below, a report style that drops the top and right spines, adds a light grid behind the data, and uses slightly larger text is saved as report.mplstyle and then used by its file name:
report_style = """
axes.spines.top: False
axes.spines.right: False
axes.grid: True
grid.alpha: 0.3
axes.axisbelow: True
font.size: 11
axes.titlesize: large
"""
with open('report.mplstyle', 'w') as f: ### save the style as a text file
f.write(report_style)
regions = ['North', 'South', 'East', 'West']
sales = [150, 120, 180, 90]
with plt.style.context('report.mplstyle'): ### use the style by its file name
fig, ax = plt.subplots(figsize=(4, 2.5))
ax.bar(regions, sales)
ax.set_title('Sales by Region ($K)')
plt.show()
A few more things to know about your own styles:
Where to keep the file. Next to your notebook, use it by file name as above. To use it by name from anywhere (
plt.style.use('report')), put it in a folder namedstylelibinside the folder thatmpl.get_configdir()prints.Styles can be combined.
plt.style.use(['ggplot', 'report.mplstyle'])appliesggplotfirst, then your settings on top; later styles win where they overlap.Share one file with a team. When everyone uses the same
.mplstylefile, every chart in a report looks the same, no matter who made it.
6.3.1.3. Legends for Axes#

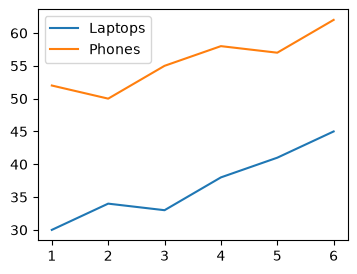

Legends are attached to an axes in the OO API. You typically supply label=... when plotting, then call ax.legend() to display the legend for that axes.
month = np.arange(1, 7)
laptops = np.array([30, 34, 33, 38, 41, 45]) ### units sold
phones = np.array([52, 50, 55, 58, 57, 62])
fig, ax = plt.subplots(figsize=(4, 3))
ax.plot(month, laptops, label="Laptops") ### label= is what the legend shows
ax.plot(month, phones, label="Phones")
ax.legend()
plt.show()

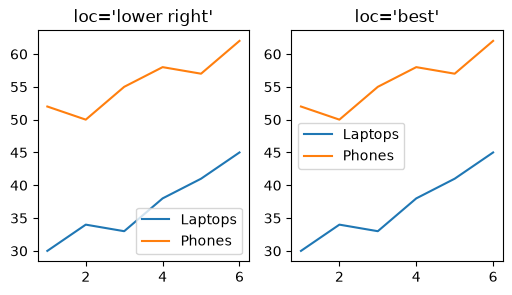

If the legend overlaps the plotted data, pass a loc= argument to ax.legend() to move it.
Common values include string labels such as 'best', 'upper right', 'upper left', 'lower left', and 'lower right'.
month = np.arange(1, 7)
laptops = np.array([30, 34, 33, 38, 41, 45]) ### units sold
phones = np.array([52, 50, 55, 58, 57, 62])
fig, ax = plt.subplots(1, 2, figsize=(6, 3))
ax[0].plot(month, laptops, label="Laptops")
ax[0].plot(month, phones, label="Phones")
ax[0].legend(loc='lower right')
ax[0].set_title("loc='lower right'")
ax[1].plot(month, laptops, label="Laptops")
ax[1].plot(month, phones, label="Phones")
ax[1].legend(loc='best')
ax[1].set_title("loc='best'")
plt.show()

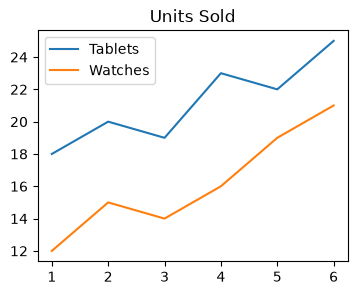

### Exercise: Label Two Products
# 1. Create month = np.arange(1, 7),
# tablets = np.array([18, 20, 19, 23, 22, 25]), and
# watches = np.array([12, 15, 14, 16, 19, 21]).
# 2. Use fig, ax = plt.subplots(figsize=(4, 3)).
# 3. Plot month vs tablets with the label "Tablets" and
# month vs watches with the label "Watches".
# 4. Show the legend in the upper left corner (loc='upper left').
# 5. Set the title to "Units Sold".
### Your code starts here.
### Your code ends here.
6.3.1.4. Plot Range set_xlim(), set_ylim()#
You can set axis ranges directly with ax.set_xlim(...) and ax.set_ylim(...). The three charts below plot the same daily sales:
Default range: Matplotlib fits the axes to the data, so the y-axis starts near 38, not 0.
Start at zero: with
set_ylim(0, 80), the promotion spike looks like the rise it really is: the peak of about $75K is nearly 80% above a normal day of about $42K.Zoomed in:
set_xlim(14, 22)andset_ylim(30, 80)show only the promotion week.
Axis ranges change what the reader sees, not the data. A y-axis that does not start at zero can make small differences look large, which matters most for bar charts.
day = np.arange(1, 31) ### days in June
daily_sales = np.array([41, 39, 43, 40, 42, 44, 38, 41, 45, 43,
40, 42, 44, 46, 61, 68, 72, 75, 70, 66,
63, 47, 44, 42, 45, 43, 41, 44, 46, 42]) ### $K; promotion on days 15-21

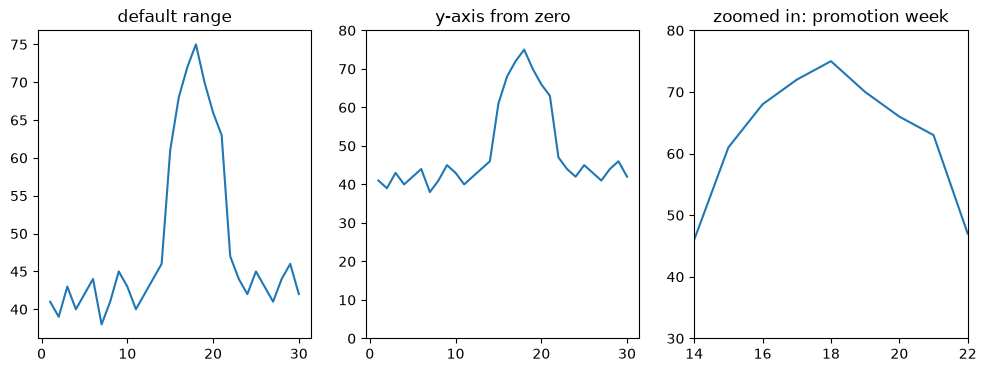

fig, axes = plt.subplots(1, 3, figsize=(12, 4))
axes[0].plot(day, daily_sales)
axes[0].set_title("default range")
axes[1].plot(day, daily_sales)
axes[1].set_ylim(0, 80) # y-axis starts at zero
axes[1].set_title("y-axis from zero")
axes[2].plot(day, daily_sales)
axes[2].set_ylim(30, 80) # y-axis runs from 30 to 80
axes[2].set_xlim(14, 22) # x-axis runs from day 14 to day 22
axes[2].set_title("zoomed in: promotion week")
plt.show()

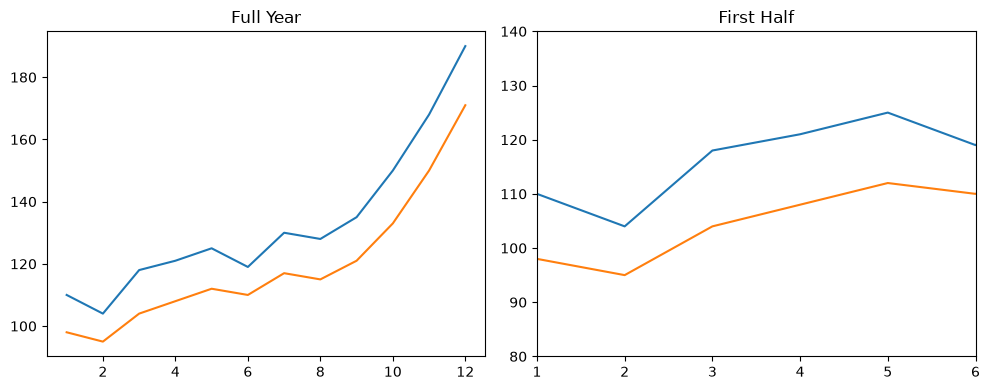

### Exercise: Controlling Axis Ranges
# 1. Create month = np.arange(1, 13),
# this_year = np.array([110, 104, 118, 121, 125, 119, 130, 128, 135, 150, 168, 190]), and
# last_year = np.array([98, 95, 104, 108, 112, 110, 117, 115, 121, 133, 150, 171]).
# 2. Use fig, axes = plt.subplots(1, 2, figsize=(10, 4)).
# 3. On axes[0], plot month vs this_year and month vs last_year. Set title "Full Year".
# 4. On axes[1], plot the same data, then set:
# - x-axis limits to [1, 6] using set_xlim
# - y-axis limits to [80, 140] using set_ylim
# Set title "First Half".
# 5. Call plt.tight_layout() at the end.
### Your code starts here.
### Your code ends here.
6.3.1.5. Colors, Line Width, and Style#
Matplotlib gives you many options for customizing colors, line widths, and line styles.
6.3.1.5.1. MATLAB-Style Format Strings#

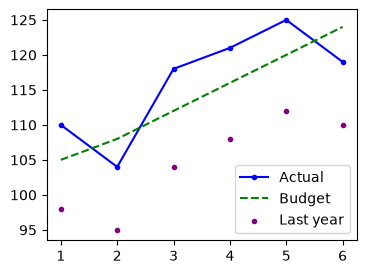

Matplotlib supports short MATLAB-style format strings such as 'b.-', which combine color, line style, and marker style in one compact argument.
month = np.arange(1, 7)
actual = np.array([110, 104, 118, 121, 125, 119]) ### revenue in $K
budget = np.array([105, 108, 112, 116, 120, 124])
last_year = np.array([98, 95, 104, 108, 112, 110])
### MATLAB style line color and style
fig, ax = plt.subplots(figsize=(4, 3))
ax.plot(month, actual, 'b.-', label='Actual') # blue line with dots
ax.plot(month, budget, 'g--', label='Budget') # green dashed line
### .plot() parameters can also be specified in a more explicit way
ax.scatter(month, last_year, color='purple', marker='.', label='Last year') # explicit parameters instead of a format string
ax.legend()
plt.show()
6.3.1.5.2. The color= Parameter#
You can define colors by name ('blue') or by hex code ('#8B008B'). When a chart has several lines, give each a label= and show a legend, so the reader knows which line is which. Avoid pairing red with green: they are hard to tell apart for many color-blind readers.

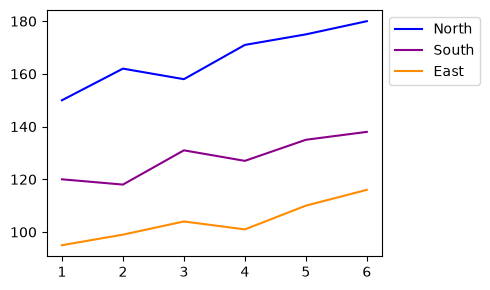

month = np.arange(1, 7)
north = np.array([150, 162, 158, 171, 175, 180]) ### revenue in $K
south = np.array([120, 118, 131, 127, 135, 138])
east = np.array([95, 99, 104, 101, 110, 116])
fig, ax = plt.subplots(figsize=(5, 3))
ax.plot(month, north, color="blue", label="North") ### color by name
ax.plot(month, south, color="#8B008B", label="South") ### RGB hex code
ax.plot(month, east, color="#FF8C00", label="East") ### RGB hex code
ax.legend(loc='upper left', bbox_to_anchor=(1, 1)) ### just outside the top-right corner, clear of the lines
plt.tight_layout()
plt.show()

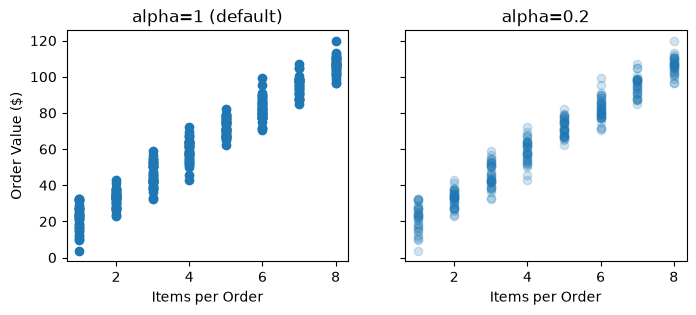

alpha sets transparency from 0 (invisible) to 1 (opaque). It matters when marks overlap: below, 300 orders are plotted by number of items. At full opacity, overlapping points hide each other; with alpha=0.2, darker areas show where many orders pile up.
rng = np.random.default_rng(3) ### fixed seed: same numbers every run
items = rng.integers(1, 9, size=300) ### items per order
order_value = 10 + items * 12 + rng.normal(0, 6, size=300) ### order value in $
fig, axes = plt.subplots(1, 2, figsize=(8, 3), sharey=True)
axes[0].scatter(items, order_value)
axes[0].set_title('alpha=1 (default)')
axes[1].scatter(items, order_value, alpha=0.2)
axes[1].set_title('alpha=0.2')
for ax in axes:
ax.set_xlabel('Items per Order')
axes[0].set_ylabel('Order Value ($)')
plt.show()
6.3.1.5.3. Line and Marker Styles#

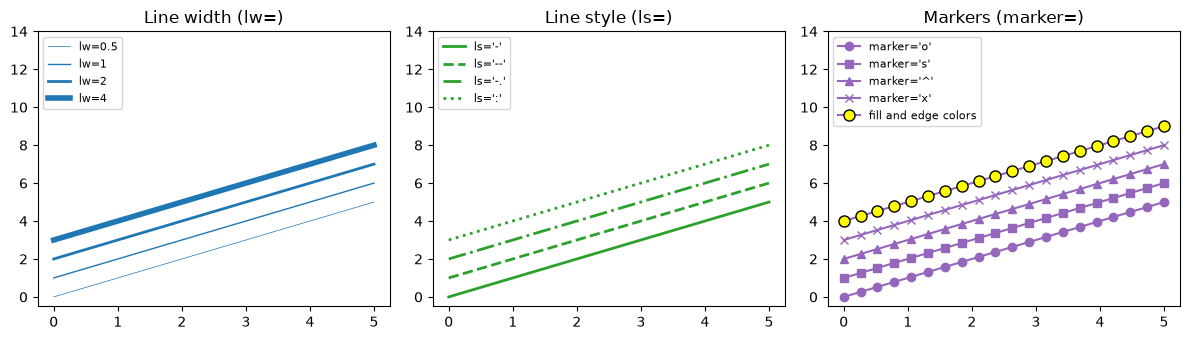

To change line width, use linewidth or lw. To change line style, use linestyle or ls. Markers have a shape (marker), a size (markersize or ms), and colors for the fill and edge (markerfacecolor, markeredgecolor). Each line in the panels below is labeled with the setting that drew it.
x = np.linspace(0, 5, 20) ### simple numbers: this cell is a catalog of styles, not data
fig, axes = plt.subplots(1, 3, figsize=(12, 3.5))
for i, lw in enumerate([0.5, 1, 2, 4]): ### line widths
axes[0].plot(x, x + i, color='tab:blue', lw=lw, label=f'lw={lw}')
axes[0].set_title('Line width (lw=)')
for i, ls in enumerate(['-', '--', '-.', ':']): ### line styles
axes[1].plot(x, x + i, color='tab:green', lw=2, ls=ls, label=f"ls='{ls}'")
axes[1].set_title('Line style (ls=)')
for i, m in enumerate(['o', 's', '^', 'x']): ### marker shapes
axes[2].plot(x, x + i, color='tab:purple', marker=m, label=f"marker='{m}'")
axes[2].plot(x, x + 4, color='tab:purple', marker='o', markersize=8,
markerfacecolor='yellow', markeredgecolor='black', label='fill and edge colors')
axes[2].set_title('Markers (marker=)')
for ax in axes:
ax.set_ylim(-0.5, 14) ### headroom so the legend sits above the lines
ax.legend(loc='upper left', fontsize=8)
plt.tight_layout()
plt.show()

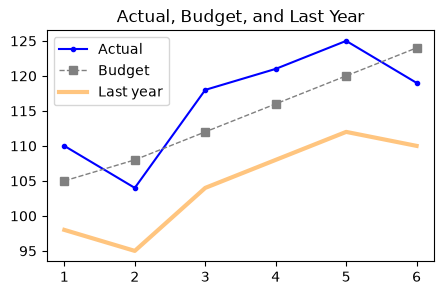

### Exercise: Style a Revenue Chart
# 1. Create month = np.arange(1, 7),
# actual = np.array([110, 104, 118, 121, 125, 119]),
# budget = np.array([105, 108, 112, 116, 120, 124]), and
# last_year = np.array([98, 95, 104, 108, 112, 110]).
# 2. Use fig, ax = plt.subplots(figsize=(5, 3)).
# 3. Plot actual with the format string 'b.-' and the label "Actual".
# 4. Plot budget with color='gray', ls='--', lw=1, marker='s', and the label "Budget".
# 5. Plot last_year with color='#FF8C00', lw=3, alpha=0.5, and the label "Last year".
# 6. Set the title to "Actual, Budget, and Last Year" and show the legend.
### Your code starts here.
### Your code ends here.
6.3.2. Common Plot Types#
So far we have used line plots to introduce Matplotlib. Below are a few common plot types, shown in the OO style so the examples stay consistent with the rest of the notebook. Each example reuses the styling tools from the first half of this section (labels, legends, colors, transparency, and axis ranges), because a chart for a manager needs both the right type and clear styling.
6.3.2.1. Scatter Plot#
A scatter plot displays individual data points as dots on a two-dimensional plane, with one variable on the x-axis and another on the y-axis. Each dot represents a single observation. Scatter plots are useful for visualizing the relationship or correlation between two continuous variables, and for identifying patterns, clusters, or outliers in the data.
price = np.array([10, 12, 15, 18, 20, 22, 25, 28, 30, 35]) ### product price in $
units = np.array([520, 480, 450, 390, 360, 330, 300, 250, 240, 190]) ### units sold per week
fig, ax = plt.subplots(figsize=(4, 3))
ax.scatter(price, units, alpha=0.7, label='Past weeks')
ax.scatter(20, 360, color='tab:orange', s=80, label='Current price ($20)') ### s= sets the marker size
ax.set_xlabel('Price ($)')
ax.set_ylabel('Units Sold per Week')
ax.set_title('Price and Weekly Units')
ax.legend()
plt.show()

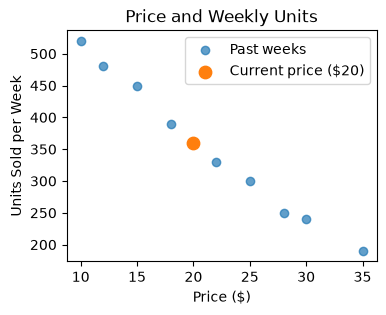

The points slope downward: at higher prices, the store sells fewer units each week. A scatter plot shows that two measures move together; on its own it does not prove that price causes the drop. Coloring one point and naming it in the legend points the reader to the week that matters now.

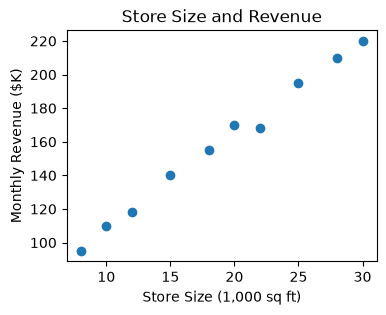

### Exercise: Store Size and Revenue
# 1. Create store_size = np.array([8, 10, 12, 15, 18, 20, 22, 25, 28, 30]) (1,000 sq ft) and
# revenue = np.array([95, 110, 118, 140, 155, 170, 168, 195, 210, 220]) ($K per month).
# 2. Use fig, ax = plt.subplots(figsize=(4, 3)).
# 3. Draw a scatter plot of store_size (x) vs revenue (y).
# 4. Label the axes "Store Size (1,000 sq ft)" and "Monthly Revenue ($K)",
# and set the title to "Store Size and Revenue".
### Your code starts here.
### Your code ends here.
6.3.2.2. Bar Plot#
A bar plot displays categorical data as rectangular bars, where the height (or length) of each bar is proportional to the value it represents. The x-axis typically shows the categories and the y-axis shows the corresponding values. Bar plots are useful for comparing quantities across distinct groups or categories.
departments = ['Apparel', 'Electronics', 'Home', 'Toys']
sales = [240, 410, 185, 120] ### quarterly sales in $K
order = np.argsort(sales)[::-1] ### positions from largest to smallest
sorted_departments = [departments[i] for i in order]
sorted_sales = [sales[i] for i in order]
colors = ['tab:blue'] + ['lightgray'] * (len(sorted_sales) - 1) ### highlight only the leader
fig, ax = plt.subplots(figsize=(4, 3))
ax.bar(sorted_departments, sorted_sales, color=colors)
ax.set_ylabel('Quarterly Sales ($K)')
ax.set_title('Electronics Leads Department Sales')
plt.show()

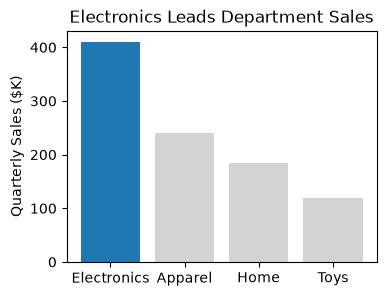

Electronics sells far more than the other departments. Three styling choices make that easy to see: the bars are sorted from largest to smallest (useful whenever the category order has no meaning of its own), only the leader is colored, and the title states the takeaway instead of just naming the data.
6.3.2.3. Histogram#
A histogram displays the distribution of a continuous variable by dividing the data into bins (intervals) and counting how many values fall into each bin. The x-axis represents the value ranges, and the y-axis represents the frequency (count) of observations in each bin. Histograms are useful for visualizing the shape of a distribution — whether it is symmetric, skewed, or has multiple peaks.
rng = np.random.default_rng(42) ### fixed seed: same numbers every run
order_values = rng.normal(loc=55, scale=12, size=200) ### 200 online orders, in $
fig, ax = plt.subplots(figsize=(4, 3))
ax.hist(order_values, bins=15, edgecolor='white') ### white edges separate the bins
ax.axvline(np.median(order_values), color='black', ls='--', label='Median') ### vertical reference line
ax.set_xlabel('Order Value ($)')
ax.set_ylabel('Number of Orders')
ax.set_title('Online Order Values')
ax.legend()
plt.show()

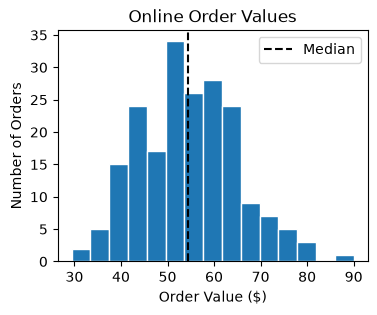

The dashed line marks the median order, about $55. Most orders fall between about $40 and $70, with fewer very small or very large orders. The number of bins changes what you see: too few bins hide the shape, and too many make it noisy. Try a few values:
rng = np.random.default_rng(42)
order_values = rng.normal(loc=55, scale=12, size=200)
fig, axes = plt.subplots(1, 3, figsize=(12, 3), sharey=False)
for ax, bins in zip(axes, [5, 15, 60]):
ax.hist(order_values, bins=bins)
ax.set_title(f'bins={bins}')
ax.set_xlabel('Order Value ($)')
axes[0].set_ylabel('Number of Orders')
plt.show()

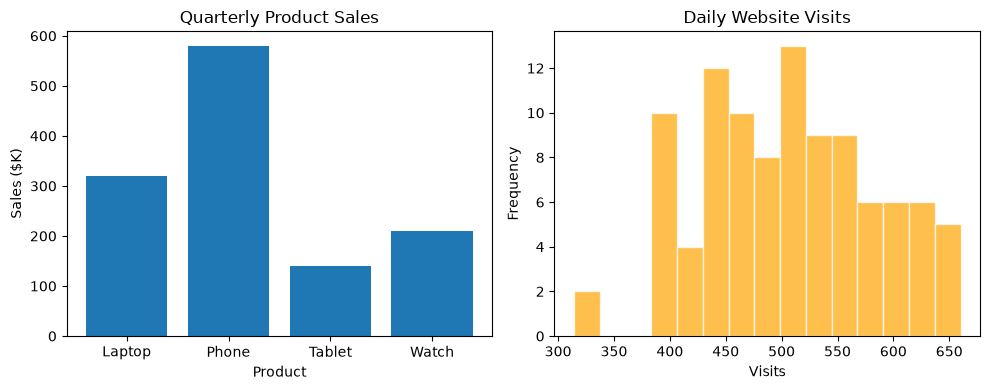

### Exercise: Bar Chart and Histogram
# The following data represent quarterly sales figures ($K) for four products
# and daily website visits over 100 days.
#
# products = ['Laptop', 'Phone', 'Tablet', 'Watch']
# sales = [320, 580, 140, 210]
# visits = np.random.default_rng(0).normal(loc=500, scale=80, size=100)
#
# 1. Create a figure with two side-by-side subplots: fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10, 4))
# 2. On ax1, draw a bar chart of products vs. sales.
# Set the title to "Quarterly Product Sales", x-label "Product", y-label "Sales ($K)".
# 3. On ax2, draw a histogram of visits using ax2.hist(visits, bins=15),
# color='orange', edgecolor='white', and alpha=0.7.
# Set the title to "Daily Website Visits", x-label "Visits", y-label "Frequency".
# 4. Call plt.tight_layout() before displaying.
### Your code starts here.
### Your code ends here.
6.3.2.4. Boxplot#
A boxplot (also called a box-and-whisker plot) summarizes a distribution in one compact shape:
The box spans from the first quartile (Q1) to the third quartile (Q3), so it holds the middle 50% of the values. Its height is the interquartile range (IQR).
The line inside the box marks the median.
The whiskers reach the most extreme values that lie within 1.5 × IQR of the box.
Points beyond the whiskers are plotted individually as outliers.
When there are no outliers, the whiskers reach the minimum and maximum. Boxplots are useful for comparing distributions across groups.
rng = np.random.default_rng(7) ### fixed seed: same numbers every run
### list comprehension to create delivery times (days) for three warehouses
delivery_days = [rng.normal(mean, sd, 100) for mean, sd in [(3.0, 0.5), (4.0, 0.8), (3.5, 0.9)]]
fig, ax = plt.subplots(figsize=(4, 3))
ax.boxplot(delivery_days, patch_artist=True, ### patch_artist=True lets the boxes be filled
boxprops={'facecolor': 'lightsteelblue'})
ax.set_xticks([1, 2, 3], ['Warehouse A', 'Warehouse B', 'Warehouse C'])
ax.set_ylim(0, 6.5) ### start at zero (see Plot Range)
ax.set_ylabel('Delivery Time (days)')
ax.set_title('Delivery Time by Warehouse')
plt.show()

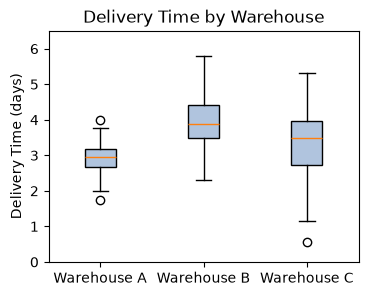

Warehouse A is the fastest and most consistent. Warehouse B is the slowest, with a median near 4 days. Warehouse C sits in between on the median, but its tall box and long whiskers make it the least predictable, so a promised delivery date is hardest to keep there.

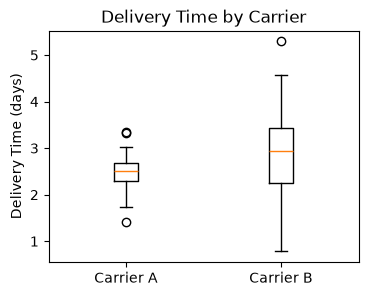

### Exercise: Compare Two Carriers
# 1. Create the delivery times (days) for two shipping carriers:
# rng = np.random.default_rng(1)
# carrier_a = rng.normal(2.5, 0.4, 80)
# carrier_b = rng.normal(3.0, 0.9, 80)
# 2. Use fig, ax = plt.subplots(figsize=(4, 3)).
# 3. Draw a boxplot of [carrier_a, carrier_b].
# 4. Label the boxes with ax.set_xticks([1, 2], ['Carrier A', 'Carrier B']),
# set the y-label "Delivery Time (days)", and the title "Delivery Time by Carrier".
### Your code starts here.
### Your code ends here.
6.3.3. Quick Reference#
The settings used most often in this chapter, in one place. Figure-level settings (figsize, dpi, fig.suptitle(), fig.savefig(), sharey) are covered in Figures and Axes.
Task |
Code |
|---|---|
Title and axis labels |
|
Legend |
|
Axis range |
|
Grid |
|
Line color |
|
Line width |
|
Line style |
|
Markers |
|
Transparency |
|
Several at once |
a format string such as |
Plot types |
|
Style for later charts |
|
For every ax.plot() option, see matplotlib.axes.Axes.plot.
6.3.4. Summary#
Figure-level methods (
fig.suptitle(),fig.tight_layout(),fig.savefig()) act on the whole figure; axes methods (ax.set_title(),ax.set_xlim(),ax.legend(),ax.grid()) act on one chart.rcParamsand style sheets (plt.style.use()) change the defaults for every chart drawn afterward.Give each series a
label=and callax.legend(); useloc=to move the legend off the data.ax.set_xlim()andax.set_ylim()zoom in on part of the data or start an axis at zero.Colors (names or hex codes),
alpha, line style, line width, and markers make series easy to tell apart. A format string such as'r--'sets several of these at once.Match the plot type to the question: a line plot for a trend, a bar plot for comparing categories, a scatter plot for a relationship, and a histogram or boxplot for a distribution.
A practical way to choose among the main Matplotlib workflows is:
Use
plt.plot()for quick, one-off exploration.Use
plt.subplots()for most plotting tasks.Use
fig.add_axes()when you need manual placement or inset axes.
6.3.5. Further Reading#
Customizing Matplotlib with style sheets and rcParams: every default you can change, and how to make your own style.
Plot types: a one-page overview of the chart types Matplotlib can draw.
Examples gallery: hundreds of charts with the code that made them.
