5.2. Pandas Chart Types#
5.2.1. Common Chart Types#
if "np" not in globals():
import numpy as np
if "pd" not in globals():
import pandas as pd
if "plt" not in globals():
import matplotlib.pyplot as plt
if "sns" not in globals():
import seaborn as sns
5.2.1.1. Line Plots#

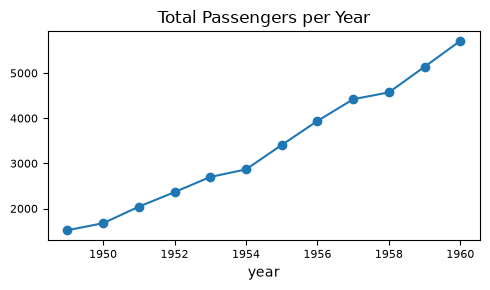

flights = sns.load_dataset("flights")
### groupby() and aggregation: For each year, add up all the passenger counts from that year.
flights.groupby("year")["passengers"].sum().plot(
kind="line",
figsize=(5, 3),
fontsize=8,
title="Total Passengers per Year",
marker="o" # show data points
)
plt.tight_layout()

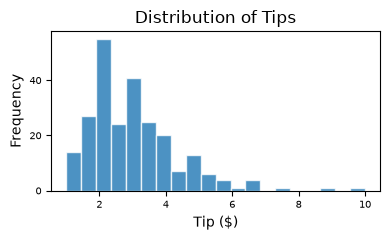

5.2.1.2. Histograms#
tips = sns.load_dataset("tips")
# ax = tips["tip"].plot( ### plot() returns the Axes object,
### so we can capture it in a variable
tips["tip"].plot(
kind="hist",
figsize=(4, 2.5),
bins=20,
edgecolor="white",
alpha=0.8,
fontsize=7,
title="Distribution of Tips"
)
plt.xlabel("Tip ($)")
plt.ylabel("Frequency")
plt.tight_layout()
5.2.1.3. Scatter Plot#

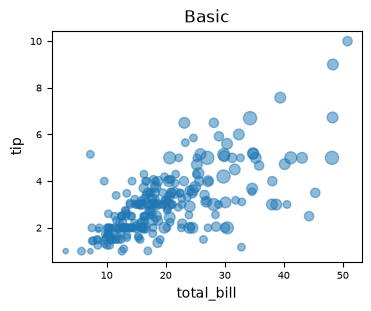

tips = sns.load_dataset("tips")
tips.plot(
kind="scatter",
x="total_bill", y="tip",
alpha=0.5, fontsize=7,
title="Basic",
figsize=(4, 3),
s=tips["size"] * 15 ### scale size by 'size' column
)
<Axes: title={'center': 'Basic'}, xlabel='total_bill', ylabel='tip'>
5.2.1.4. Bar Plots#
Bar plots are one of the most common ways to compare categorical data visually. They represent quantities as rectangular bars whose length (or height) corresponds to the value being measured.
Both bar() and barh() create bar charts — the difference is simply orientation. Stacked bar charts, on the other hand, how multiple subcategories contribute to a total within each main category.
Plot Type |
Orientation |
Purpose |
Best For |
|---|---|---|---|
Bar Plot |
Vertical |
Compare category values |
Simple category comparisons |
Barh Plot |
Horizontal |
Compare category values with long labels |
Readability and ranking-type data |
Stacked Bar |
Either |
Show part-to-whole relationships |
Composition of totals across categories |

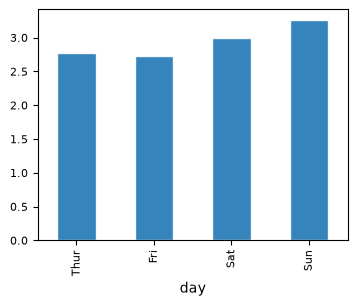

5.2.1.4.1. Vertical Bar Plot#
tips = sns.load_dataset("tips")
tips.info()
<class 'pandas.DataFrame'>
RangeIndex: 244 entries, 0 to 243
Data columns (total 7 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 total_bill 244 non-null float64
1 tip 244 non-null float64
2 sex 244 non-null category
3 smoker 244 non-null category
4 day 244 non-null category
5 time 244 non-null category
6 size 244 non-null int64
dtypes: category(4), float64(2), int64(1)
memory usage: 7.4 KB
### bar plot
tips.groupby("day", observed=True)["tip"].mean().plot(kind="bar",
figsize=(4, 3), edgecolor="white", alpha=0.9, fontsize=8)
<Axes: xlabel='day'>

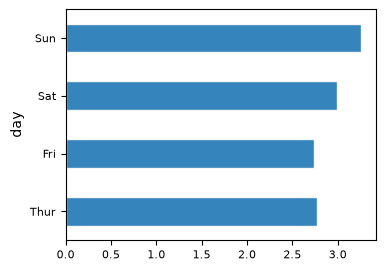

5.2.1.4.2. Horizontal Bar Plot#
### bar plot horizontal
### Observed categories
### Use categories that are actually observed in the data
tips.groupby("day", observed=True)["tip"].mean().plot(kind="barh",
figsize=(4, 3), edgecolor="white", alpha=0.9, fontsize=8)
<Axes: ylabel='day'>

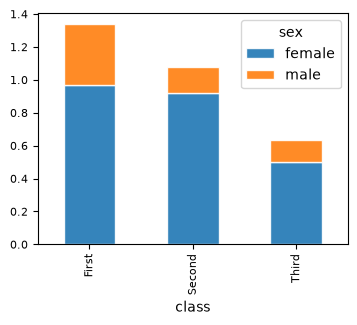

5.2.1.4.3. Stacked Bar Plot#
### titanic — survival count by gender and class
import seaborn as sns
titanic = sns.load_dataset("titanic")
titanic.groupby(["class", "sex"], observed=True)["survived"].mean()\
.unstack().plot(kind="bar",
stacked=True,
figsize=(4, 3), edgecolor="white", alpha=0.9, fontsize=8)
print(titanic.groupby(["class", "sex"], observed=True)["survived"].mean(), "\n")
print(titanic.groupby(["class", "sex"], observed=True)["survived"].mean().unstack())
class sex
First female 0.968085
male 0.368852
Second female 0.921053
male 0.157407
Third female 0.500000
male 0.135447
Name: survived, dtype: float64
sex female male
class
First 0.968085 0.368852
Second 0.921053 0.157407
Third 0.500000 0.135447
5.2.1.5. BoxPlots#

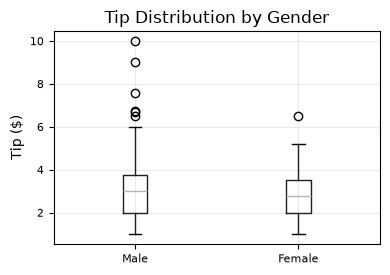

tips.boxplot(
column="tip",
by="sex",
figsize=(4, 3),
fontsize=8
)
plt.suptitle("") # removes default "Boxplot grouped by sex" title
plt.title("Tip Distribution by Gender")
plt.xlabel("")
plt.ylabel("Tip ($)")
plt.grid(alpha=0.25)
plt.tight_layout()
How to read each box:
The green line inside the box is the median tip: the middle value.
The bottom of the box is the 25th percentile: about 25% of tips are below this.
The top of the box is the 75th percentile: about 75% of tips are below this.
The box shows the middle 50% of tips.
The whiskers show the usual range of non-outlier values.
The circles are outliers: unusually high tip amounts.
5.2.1.6. Area Plot#

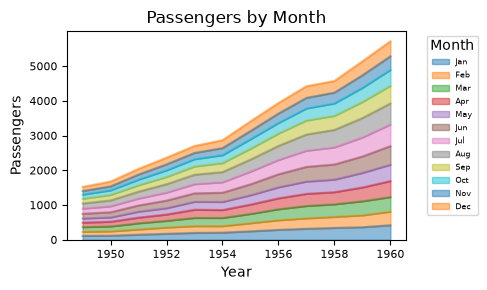

flights = sns.load_dataset("flights")
df = flights.pivot(index="year", columns="month", values="passengers")
df.plot(
kind="area",
figsize=(5, 3),
alpha=0.5,
fontsize=8,
title="Passengers by Month"
)
plt.xlabel("Year")
plt.ylabel("Passengers")
plt.legend(title="Month", bbox_to_anchor=(1.05, 1), loc="upper left", fontsize=6)
plt.tight_layout()

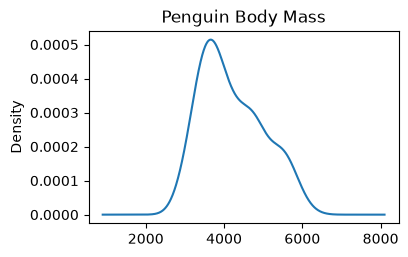

5.2.1.7. KDE Plot#
A Kernel Density Estimate (KDE) plot is smooth version of histogram.
Density tells you where values are concentrated. A higher curve means more values are packed in that region. The exact y-value doesn’t matter — the shape and peaks are what you read.
The peak shows where most values are concentrated
A wider curve means more spread in the data
The area under the curve always equals 1.0
The y-axis shows density — not count or percentage
# %pip install scipy ### ensure scipy is installed; uncomment when done
# penguins — body mass or flipper length, clear multi-modal distribution
penguins = sns.load_dataset("penguins").drop(columns=\
["bill_length_mm", "bill_depth_mm", "flipper_length_mm"])
print(penguins.head())
penguins["body_mass_g"].plot(
kind="kde",
title="Penguin Body Mass",
figsize=(4,2.5)
)
species island body_mass_g sex
0 Adelie Torgersen 3750.0 Male
1 Adelie Torgersen 3800.0 Female
2 Adelie Torgersen 3250.0 Female
3 Adelie Torgersen NaN NaN
4 Adelie Torgersen 3450.0 Female
<Axes: title={'center': 'Penguin Body Mass'}, ylabel='Density'>

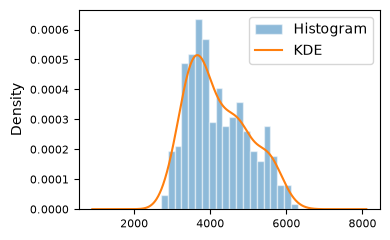

We can also overlay KDE with histogram, which makes it clear that a KDE is a smoothed out version of histogram.
penguins = sns.load_dataset("penguins").drop(columns=\
["bill_length_mm", "bill_depth_mm", "flipper_length_mm"])
penguins["body_mass_g"].plot(
kind="hist", bins=20,
edgecolor="white", alpha=0.5,
density=True, ### must be density=True to overlay KDE on histogram
# title="Histogram",
fontsize=8,
label="Histogram",
figsize=(4, 2.5)
)
penguins["body_mass_g"].plot(
kind="kde",
# title="KDE",
fontsize=8,
label="KDE"
)
plt.legend()
plt.tight_layout()
5.2.1.8. Hexagonal Bin Plot#
Hexagonal bin plots are useful for bivariate Data and is an alternative to scatterplot.

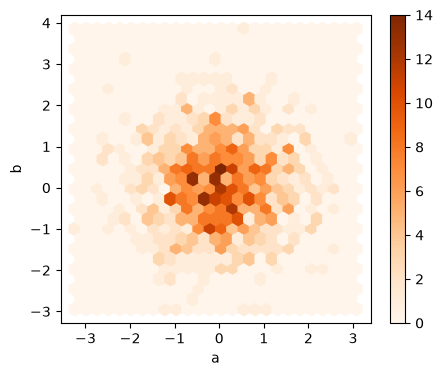

np.random.seed(42)
df = pd.DataFrame(np.random.randn(1000, 2), columns=['a', 'b'])
df.plot.hexbin(x='a', y='b',
gridsize=25,
cmap='Oranges',
figsize=(5, 4),
)
<Axes: xlabel='a', ylabel='b'>

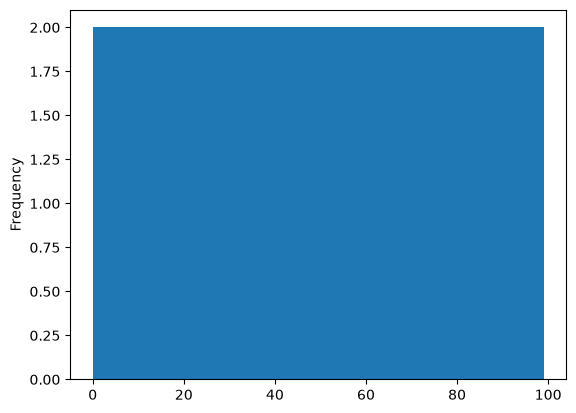

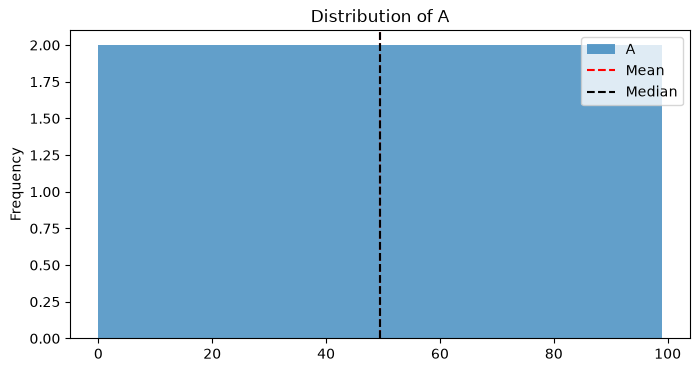

### EXERCISE 1: Histogram Fundamentals
# Goal: Visualize the distribution of `A` in `df1`.
# Requirements:
# 1) Plot a histogram for `df1['A']` with exactly 50 bins.
# 2) Set `figsize=(8, 4)` and `alpha=0.7`.
# 3) Add a title: "Distribution of A".
# Stretch: Add vertical dashed lines for the mean and median of `A`.
# Your code here
# Solution
import matplotlib.pyplot as plt
df1['A'].plot.hist(bins=50)
plt.show()

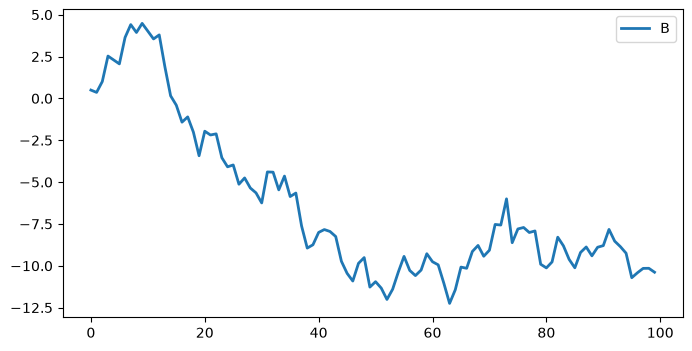

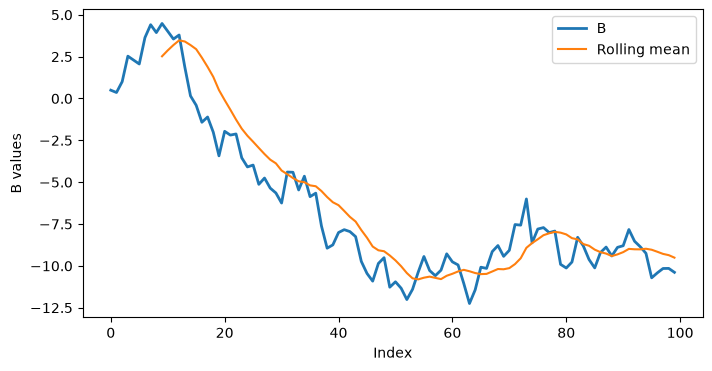

### EXERCISE 2: Line Plot Styling
# Goal: Show trend behavior for one feature.
# Requirements:
# 1) Plot `df1['B']` as a line plot.
# 2) Use `figsize=(8, 4)` and `lw=2`.
# 3) Set x-label to "Index" and y-label to "B values".
# Stretch: Overlay a rolling mean with window=10 on the same axes.
# Your code here
# Solution
df1.plot.line(y='B', figsize=(8,4), lw=2)
<Axes: >

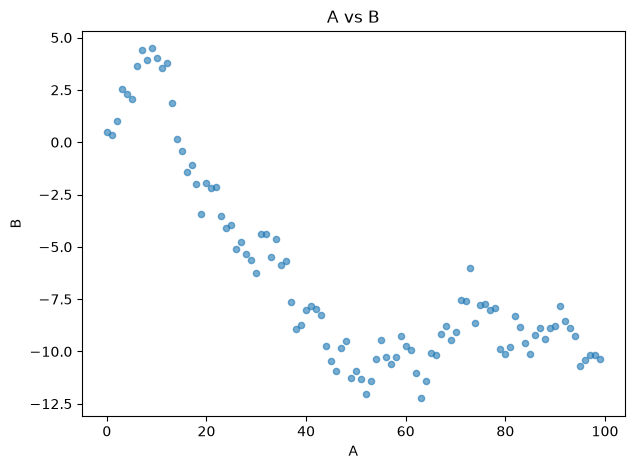

### EXERCISE 3: Scatter Relationship
# Goal: Examine the relationship between `A` and `B`.
# Requirements:
# 1) Create a scatter plot with `x='A'` and `y='B'`.
# 2) Set `figsize=(7, 5)`.
# 3) Set title to "A vs B".
# Stretch: Add `alpha=0.6` and compare readability.
# Your code here
5.2.2. Section Practice#
Use this short exercise to check the main workflow from this section.
### Exercise: Plan a Pandas Chart Types Chart
# A team wants to compare sales across four regions.
# Create two lists named regions and sales. Then print the region with the highest sales.
### Your code starts here
### Your code ends here
Highest sales region: South
### Solution
regions = ["North", "South", "East", "West"]
sales = [240, 215, 260, 230]
best_index = sales.index(max(sales))
print(regions[best_index])
East
